Neutrik rearTWIST BNC Cable Connector for 1505F

$9.00 Inc GST

In stock
0 out of 5
( There are no reviews yet. )

$9.00 Inc GST

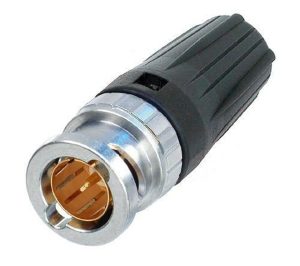

Neutrik NBNC75BJP9 rearTWIST BNC Cable Connector for 1505F

Availability: 24 In Stock in Store or Hamilton Warehouse SKU: NBNC75BJP9 Category:
Add to wishlist
Compare

Description

Suitable cables:
Belden 1505F, Bryant BD SD53F, Cordial CVI 08-37 HD, Klotz VD083LP 0.8L/3.7DZ, Tesca Presto

Crimp size:

  • Pin: 1.6 mm (square)
  • Shield: 6.47 mm (hex)

Description

The Neutrik NBNC75BJP9 rearTWIST BNC Cable Connector offers a true 75 Ω design and is suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers colour coding. Note: Speakon is not to be used as an AC mains or power supply connector.

Key Features

  • rearTWIST Principle locking / unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. This connector turns from the back and not the front
  • True 75 Ω design meets stringent HDTV / DVD requirements
  • Leading Area: Avoids tilting due to side forces to protect contacts from deformation
  • Guarantees a lifetime of minimum 1,000 mating cycles
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Good cable protection and retention
  • Precise Swiss-machined brass parts for high durability
  • Accessories include color-coded boots in 10 standard colors, crimp tool, and dies
  • Belden 1505F is the suitable cable (sold separately)

Specifications

Connection Type BNC 75 Ω
Gender Male
Contact Resistance ≤3 m Ω inner (inner)
Comment ≤2
Dielectric Strength 1.5 kVDC (peak)
Insulation Resistance >5 GΩ
Impedance 75 Ω
Rated Voltage 500 V
VSWR ≤1.050 / >32 dB up to 1 GHz≤1.065 / >30 dB up to 2 GHz≤1.100 / >26 d
Cable O.D. 0.24″ (6.3 mm)
Cable Retention >30 N (center)
Crimp Mass 6.47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Crimp Size 1.6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion Force <25 N
Lifetime >1,000 mating cycles
Locking Device Bayonett
Cable Anchoring: Jacket crimping
Standard Compliance IEC 6016908, MIL 348A
Contact Crimpability: Complies with IEC 60803 and IEC 60352-2
Temperature Range -22 to 185°F (-30 to 85°C)
