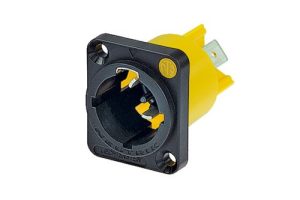

Neutrik – NAC3MPX – Powercon True1 Appliance Inlet Chassis Mount.

Description

Appliance inlet connector, 1/4” flat tab terminals

The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits
Appliance inlet

True mains connector with breaking capacity (CBC)
Lockable 16 A single phase connector (USA: 20 A)
Easy and reliable twist lock system
Extremely robust and reliable
ENEC certified according to IEC 60320
UL recognized components
IP65 ingress protection in mated condition and unmated in combination with SCNAC-MPX
Technical Information
Product
Title NAC3MPX
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 GΩ (after damp heat test)
Number of electronical contacts 2 + PE
Rated current per contact 16 A rms (USA: 20 A)
Rated voltage 250 V ac
Mechanical
Lifetime > 5000 mating cycles
Wiresize 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 V-0
Temperature range – 30 °C – +80 °C
