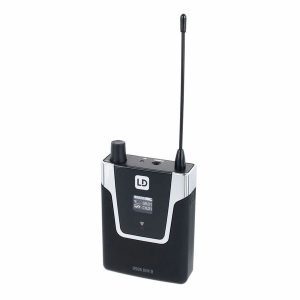

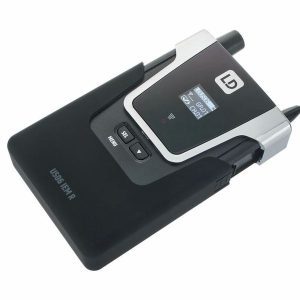

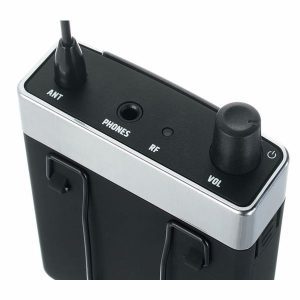

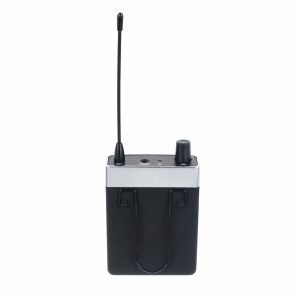

LD Systems U506 IEM Receiver Only

$649.00 Inc GST

In stock
0 out of 5
( There are no reviews yet. )

$649.00 Inc GST

LD Systems U506 IEM Receiver Only

Availability: 6 In Stock in Store or Hamilton Warehouse SKU: LDU506IEMR Category:
Add to wishlist
Compare

Description

  • Reliable in-ear monitoring with more than 100 m range
  • 96 available channels
  • 2, 10 or 30 mW ERP selectable transmission power
  • Convenient infrared frequency syncing
  • Individual user name assignment and memory for 10 custom presets
  • Extended frequency response
  • 3-band EQ with parametric mids
  • Switchable limiter
  • Stereo and mono modes of operation
  • High-contrast OLED display
  • Transmitter with direct monitoring headphone output
  • Bodypack receiver with three selectable squelch levels
  • 10 h of bodypack receiver operation on two AA batteries
  • U500® IEM transmitter compatible with U300® IEM bodypacks
General
Product type
In-ear Monitoring Accessories
Type
Receivers
Transmission frequency range
655 – 679 MHz
Channels
12
Transmission method
FM, mono/stereo
Frequency response
40 – 16000 Hz
Audio output
3.5 mm TRS
Max. audio output level
33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW
Antenna connector
Fixed to housing
Controls
Down, On / Off, Up, volume
Indicators
Multifunctional OLED-Display, RF (LED)
Operating voltage
2 x 1.5 V AA
Operating time
< 10 hours
Width
64 mm
Height
100 mm
Depth
24 mm
Weight
0,095 kg
Accessories (included)
2 x AA batteries, Antenna
Features
battery status LED

Description

Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems’ noise floor is exceptionally low.

Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.
