Rugged all-in-one wireless system with high flexibility for broadcast quality sound

Availability: Stock on Order or Currently Unavailable Contact for more Info SKU: 507981 509517 Category:
Add to wishlist
Compare

Description

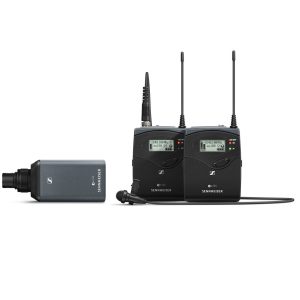

Portable wireless combo set. Includes (1) SK 100 G4 bodypack, (1) ME 2-II lavalier (omnidirectional, condenser), (1) SKP 100 G4 plug-on for dynamic microphones, (1) EK 100 G4 portable receiver, (1) CL1 output cable (1/8″), (1) CL100 output cable (unbalanced XLR) and (1) camera mount (626-668 MHz)

A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.
A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
Multi-purpose set for mobile journalism and documentary. The powerful plug-on transmitter SKP 100 turns every wired dynamic microphone into a wireless transmitter while the easy to use clip-on microphone ME 2-II (omni-directional) offers excellent speech intelligibility during interviews.



  • Rugged all-in-one wireless system with high flexibility for broadcast quality sound
  • Excellent sound and construction quality
  • Easy to use and fast setup time
  • Powerful and reliable wireless transmission
  • Range: up to 100 meters / 330 feet
  • Up to 8 hours of operation time
Specifications
EK 100 G4
  • Frequency range
  • Dimensions
    Approx. 82 x 64 x 24 mm
  • Compander
    Sennheiser HDX
  • THD, total harmonic distortion
    ≤ 0.9 %
  • Weight
    (incl. batteries) approx. 160 g
  • Audio output
    3.5 mm jack socket: +12 dBu (mono, unbalanced)
  • Signal-to-noise ratio
    ≥ 110 dBA
  • Switching bandwidth
    up to 42 MHz
  • Peak deviation
    ±48 kHz
  • Nominal deviation
    ±24 kHz
  • Operating time
    Typically 8 h
  • Modulation
    Wideband FM
  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption
    at nominal voltage: typ. 180 mA
    with receiver switched off: ≤ 25 µA
  • Adjacent channel rejection
    ≥ 65 dB
  • Intermodulation attenuation
    ≥ 65 dB
  • Powering
    3 V battery / 2.4 V rechargeable battery
  • Receiving frequency
    Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • RF sensitivity
    < 1.6 μV for 52 dBA eff S/N
  • Squelch
    low: 5 dBµV middle: 15 dBµV high: 25 dBμV
  • Temperature Range
    -10 °C to +55 °C
  • Receiver Principle
    Adaptive diversity
  • Blocking
    ≥ 70 dB
SK 100 G4
  • Dimensions
    Approx. 82 x 64 x 24 mm
  • Compander
    Sennheiser HDX
  • THD, total harmonic distortion
    ≤ 0.9 %
  • Weight
    (incl. batteries) approx. 160 g
  • Signal-to-noise ratio
    ≥ 110 dBA
  • RF output power
    Max. 30 mW
  • Switching bandwidth
    up to 42 MHz
  • Peak deviation
    ±48 kHz
  • Nominal deviation
    ±24 kHz
  • Operating time
    Typically 8 h
  • Modulation
    Wideband FM
  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption
    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 µA
  • Input impedance
    40 kΩ, unbalanced / 1 MΩ
  • Max. Input voltage
    3 Veff
  • Powering
    3 V battery / 2.4 V rechargeable battery
  • Transmission frequency
    Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • AF frequency response
    Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
  • Temperature Range
    -10 °C to +55 °C
  • Frequency stability
    ≤ ±15 ppm
SKP 100 G4
  • Dimensions
    Approx. 105 x 43 x 43 mm
  • Compander
    Sennheiser HDX
  • THD, total harmonic distortion
    ≤ 0.9 %
  • Weight
    (incl. batteries) approx. 195 g
  • Signal-to-noise ratio
    ≥ 110 dBA
  • RF output power
    Max. 30 mW
  • Switching bandwidth
    up to 42 MHz
  • Peak deviation
    ±48 kHz
  • Nominal deviation
    ±24 kHz
  • Operating time
    Typically 8 h
  • Modulation
    Wideband FM
  • Power supply
    2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption
    at nominal voltage: typ. 180 mA
    with transmitter switched off: ≤ 25 µA
  • Input impedance
    68 kΩ, unbalanced
  • Max. Input voltage
    3.3 Veff
  • Powering
    3 V battery / 2.4 V rechargeable battery
  • Transmission frequency
    Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • AF frequency response
    80 – 18,000 Hz
  • Temperature Range
    -10 °C to +55 °C
  • Frequency stability
    ≤ ±15 ppm
ME 2
  • Connector
    3.5 mm jack
  • Frequency response
    50 to 18,000 Hz (ME 2-II)
  • Max. sound pressure level
    130 dB
  • Cable length
    approx. 1.60 m
  • Transducer principle
    pre-polarized condensor microphone
  • Pick-up pattern
    omni-directional
  • Sensitivity in free field, no load (1kHz)
    20 mV/Pa
  • Equivalent noise level
    36 dB
What’s in the Box
  • EK 100 G4 camera receiver
  • SK 100 G4 bodypack transmitter
  • SKP 100 G4 plug-on transmitter
  • ME 2 clip-on microphone
  • 6 AA batteries
  • CA 2 camera adapter
  • CL 1 3.5 mm jack cable
  • CL 100 XLR to 3.5 mm jack adapter cable
  • quick guide
  • safety guide
  • manufacturer declaration sheet
