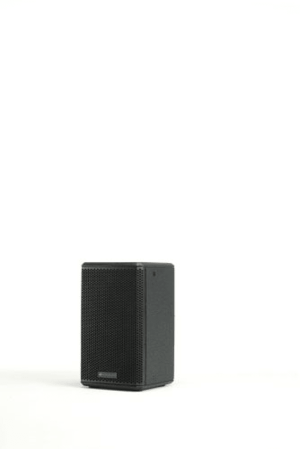

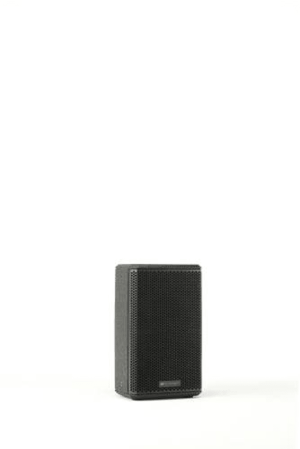

dB Technologies LVX P8 Passive Speaker
$599.00 Inc GST
dB Technologies LVX P8 Passive Speaker
- Description
- Reviews (0)
Description
Description
The dB Technologies LVX P8 Passive Speaker is equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.
Full range LVX P8 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.
The solid plywood enclosures feature a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP10H or vertical brackets (VB-LP810V). The cabinet features an integrated handle on back side and a 36 mm pole mount plate.
Specifications
Technical Data
Speaker Type 2-Way Passive Speaker
Acoustical data
Peak Power 400 W
Impedance 8 Ohms
Frequency Response [- 10 dB] 74 – 18.000 Hz
Max SPL 122 dB
HF 1 “, 1″ v.c.
Directivity 90×70°
Horn Rotatable
LF 8 “, 1.5″ v.c.
Input
Signal Input 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output 1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing Plywood
Pole Mount 36 mm

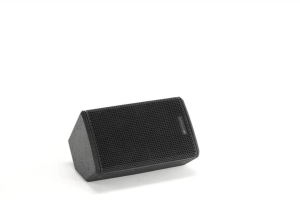

Angle Up Monitor use 40°
Rigging Points 12 x M8

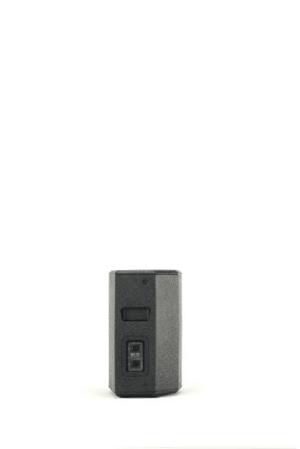

Handles 1 on back side
Width 255 mm (10.03 in)
Height 426 mm (16.77 in)
Depth 258 mm (10.15 in)
Weight 8.1 kg (17.8 lbs)
