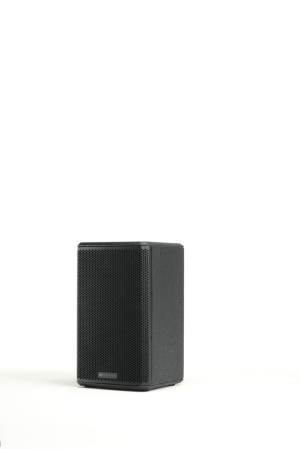

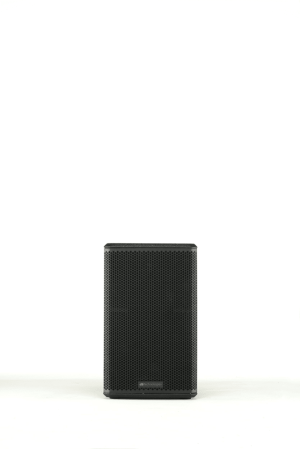

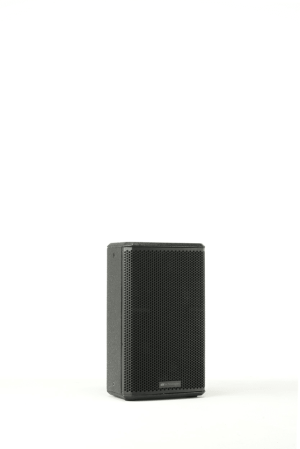

dB Technologies LVX P10 Passive Speaker

Description

The dB Technologies LVX P10 Passive Speaker is equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.

Full range LVX P10 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.

The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP810H) or vertical (VB-LP810V) brackets. The cabinet features an integrated handle on back side and a 36 mm pole mount plate.

Specifications
Technical Data
Speaker Type 2-Way Passive Speaker
Acoustical data
Peak Power 600 W
Impedance 8 Ohms
Frequency Response [- 10 dB] 73- 19.000 Hz
Max SPL 125 dB
HF 1 “, 1″ v.c.
Directivity 90×70 °
Horn Rotatable
LF 10“, 1.5″ v.c.
Input
Signal Input 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output 1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing Plywood
Pole Mount 36 mm

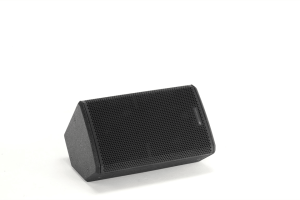

Angle Up Monitor use 40°
Rigging Points 12 x M8

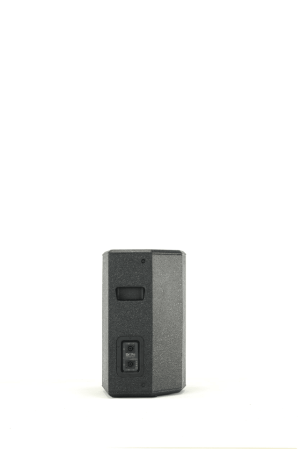

Handles 1 on back side
Width 300 mm (11.81 in)
Height 496 mm (19.52 in)
Depth 298 mm (11.73 in)
Weight 9.3 kg (20.5 lbs)
