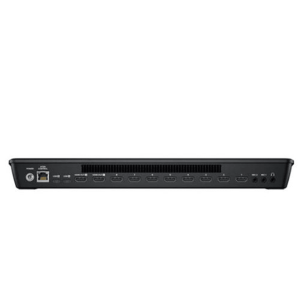

Blackmagic Design ATEM Mini Extreme

$1,979.00 Inc GST

In stock
0 out of 5
( There are no reviews yet. )

$1,979.00 Inc GST

Blackmagic Design ATEM Mini Extreme

Availability: 1 In Stock in Store or Hamilton Warehouse SKU: SWATEMMINICEXT Category:
Add to wishlist
Compare

Description



The Blackmagic Design ATEM Mini Extreme is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB.

This versatile switcher’s eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds. Switch, add effects, color grade, and key in real time using the control surface’s buttons, or via the software control panel.

  • 8-Channel HDMI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Program Out
  • 11-Input, 2-Channel Audio Mixer
  • Input Frame Rate and Format Converter
  • Re-Sync on All HDMI Inputs
  • HD Multiview Output with up to 16 Views
  • Local and Software Switching
  • 4 x Upstream, 2 x Downstream Keyers
Available M/E Layers 9 M/E
Effect Types 2 x DVE
4 x Luma Key
4 x Chroma Key
Graphics Memory 20 Images
Downstream Keys 2 x Chroma, Luma, DVE
Generators 5 x Pattern
2 x Color
Audio Mixing 2-Channel Mixing
Switching Type Pushbutton, Software
Processing Resolution 1080p
Number of Video Input Sources 8
Video Input Connectors 8 x HDMI
Input Video Format HDMI (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
Audio Input Connectors 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI: 2-Channel (per Input)
Video Output Channels 2
Video Output Connectors 2 x HDMI
Output Video Format HDMI (10-Bit 4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Output Connectors 1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output HDMI: 2-Channel
Multiview Output 16-Way Multiview viaHDMI
Other I/O 1 x RJ45
2 x USB Type-C
HDCP Support None
IP Video H.264:
1920 x 1080 Encoding
Transport Protocols RTMP
Simultaneous Streams 1 Streams
Recording Modes 1920 x 1080p up to 60 fps (MP4)
OS Compatibility macOS 10.15
macOS 11.1 or Later
Windows 10
Power Connector 1 x Barrel (12 VDC) Input
Power Consumption Device: 36 W
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 70%
Dimensions 14.56 x 5.37 x 1.56″ / 36.98 x 13.64 x 3.96 cm
Weight 2.72 lb / 1.23 kg
Package Weight 1.99Kg
Box Dimensions (LxWxH) 50.80cm x 18.54cm x 7.62cm
